PWT auto XCS welding system
Automatic pipeline welding with consistent quality, built‑in control, and field‑proven productivity.
PWT auto XCS welding system
Automatic welding system for automatic pipeline welding with high performances and advanced welding arc control features. The PWT AUTO XCS welding system is reliable and flexible using a special process for root-pass welding (with or without copper backing), Advanced Pulse for fill/cap and FCAW for tie-ins and crossings. Delivering repetitive quality results from root to fill and cap, with less variability, less rework, and more uptime.
Features
- Advanced Pulse
- Through the arc seam tracking
- Automatic CTWD* (Contact Tip to Work Distance)
- Automatic gas mixer
- External display to monintor real time parameters
Technical highlights
- Pipe diameter range: 6″ and up
- Welding positions: 1G / 5G / 6G
- Processes:
- Root: RMD (no copper support) or GMAW (with copper support)
- Fill/Cap: Advanced Pulse GMAW (A‑GMAW) and mechanized FCAW (M‑FCAW)
- Operating temperature: −30°C to +60°C
- Torch inclination: ±15° (±1° accuracy)
- Tilt sensor: ±1° accuracy
- Oscillation amplitude: 0–25 mm; Dwell: 0–2s
- Wire feed: 0–16 m/min; Travel speed: 0–150 cm/min
- Minimum cutback: 140 mm (bevel to coating); 305 mm (bevel to concrete)
- Power: 400 V AC (±10%), three‑phase (control box); 24 V components where specified
Why PWT auto XCS welding system?
- Predictable quality, pass after pass
Advanced Pulse for fill- and cap pass, combined with a specialized root pass process with or without copper backing, stabilized heat input and bead formation. This reduces spatter, undercut, and lack of fusion providing consistent and high-quality welds. - Fewer variables to manage
Automatic CTWD maintains the correct arc length. Seam tracking keeps the torch on course. The integrated dual gas mixer for Argon and CO₂ delivers consistent shielding gas blends, reducing operator variability and providing repeatable quality. - Real‑time control
External displays at the control box and internal displays on the spool holders let you monitor welding parameters in real time. This helps you detect and correct issues before they become defects. - Designed for all conditions
The control box is IP23 rated and the bugs and spool holders are IP54 rated. Combined with an operating temperature range from −30 °C to +60 °C, the system keeps you welding reliably in extreme climates. - Consistent motion, consistent welds
All motion axes use digital stepper motors to support precise and repeatable wire feed, travel, oscillation, and torch positioning. This consistency is key to achieving uniform penetration and a stable bead shape. - Faster setups, less downtime
Two interchangeable left/right welding bugs with ergonomic design mount quickly on the guide ring. Inside the welding tent, standard 15–18 kg spools and local parameter access keep operators productive. - One system for root to cap, tie‑ins and crossings
Perform every weld pass with our welding system. Use RMD or GMAW for the root, with or without copper backing, and switch to Pulse GMAW or mechanized FCAW for fill and cap. This approach reduces hand‑offs and eliminates unnecessary equipment changes.
System components

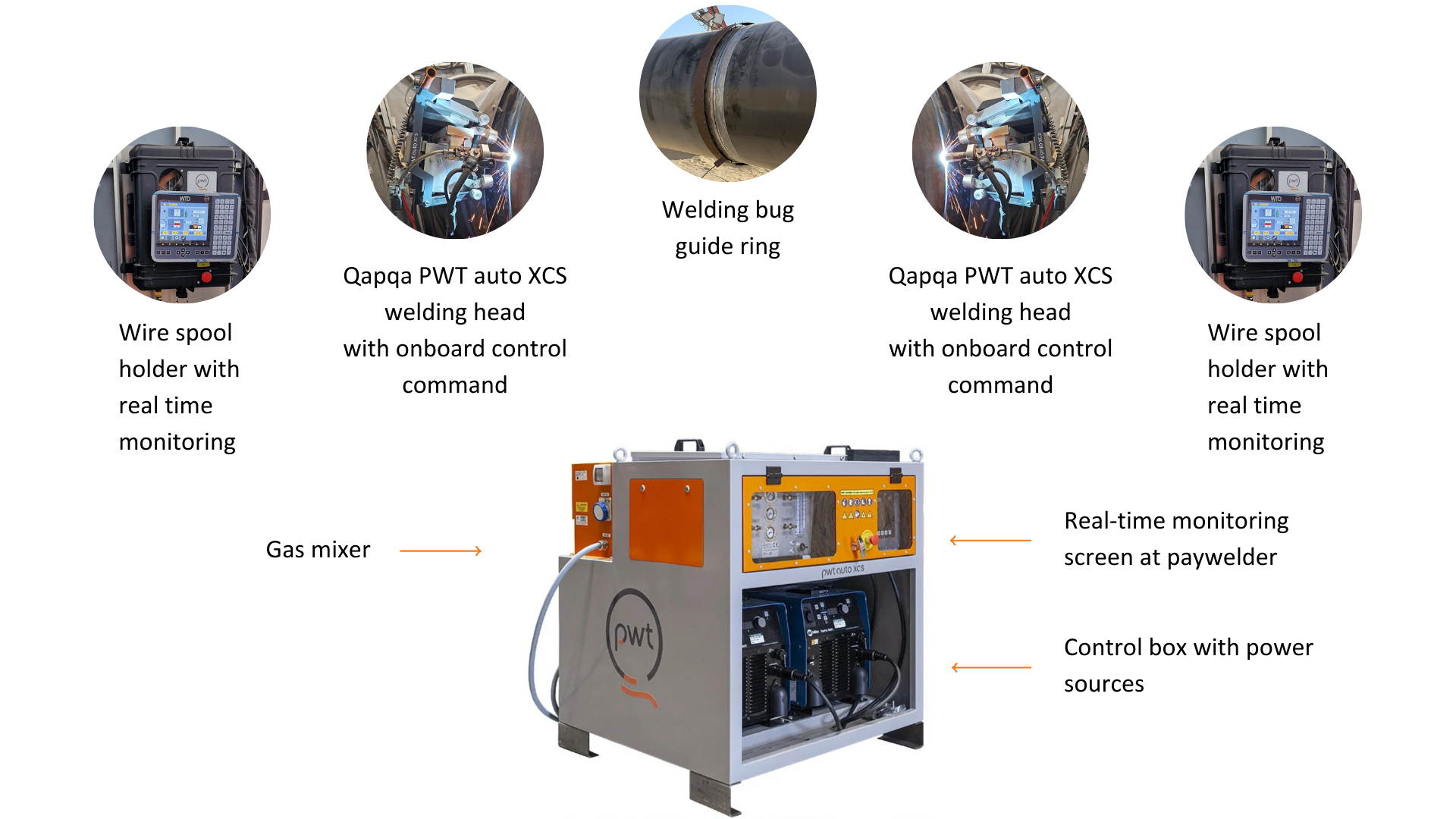

The PWT auto XCS is built from rugged, field-proven components designed for pipeline environments:
- Control Box with dual power sources, electronic PSU, and integrated Argon/CO₂ gas mixer
- Two identical welding bugs (interchangeable left/right) with quick-mount guide band interface
- Two wire spool holders with integrated parameter displays for real-time monitoring and adjustments inside the tent
- Guide ring system for precise welding bug travel and positioning
